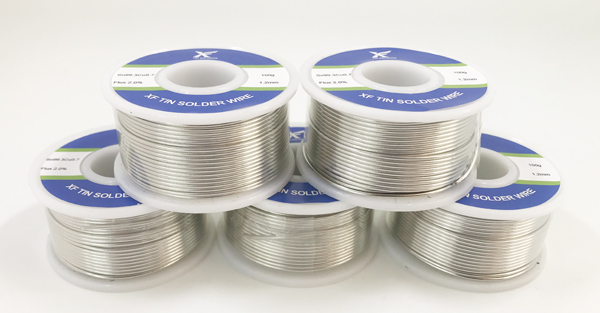

Name:XF asahi cored lead free solder wire
Name:XF asahi cored lead free solder wire
Alloy:Tin Silver Copper
Core:Flux cored
Type:Lead free solder wire
Origin:China

Send Inquiry

Product Description

XF asahi cored lead free solder wire

Descriptions of XF asahi cored lead free solder wire:

Composition: The asahi cored lead free solder wire is a Pb free solder alloy, consisted of tin, silver, copper at different composition. The most 3 popular types would be the SAC305 asahi cored lead free solder wire , SAC0307 lead free solder wire, SAC07 lead free solder wire. The SAC305 is made of 96.5% tin, 3.0% silver and 0.5% copper; The SAC0307 is made of 99% tin, 0.3% silver and 0.7% copper; While SAC07 is only composed of tin and copper without silver, with 99.3% tin and 0.7% copper respectively.

Core: This asahi cored lead free solder wire is implemented with a rosin flux core, no clean type. It's rosin based flux, that is non aggressive, neutral ingredient which leaves nearly no residue after soldering, thus with this cored lead free solder wire used for electronic soldering. The cored solder wire is a 2-in-1 formula, easy and handy for most of the users, because soldering will need to be done with proper flux, and this 2-in-1 solder wire already made with flux core so no additional flux needs to be used together.

Wire diameter: the asahi cored lead free solder wire can be made with various of wire diameter, ranging from 0.5mm to 3.2mm. It depends on what applications you're using for, or what subjects you're soldering. Choose a right wire diameter will help you to give the proper amount of solder onto the joint, neither too little that you need to solder twice nor too much that you need to remove the excessive.

Weight of each roll: We can make the asahi cored lead free solder wire with 100g/roll, 200g/roll, 250g/roll, 500g/roll, 1000g/roll or other upon request. Generally the small size roll is for commercial purpose (such as retail), the bigger rolls are for industrial purpose (such as manufacturing). We accept customized weight.


We are manufacturer and exporter of asahi cored lead free solder wire, contact our sales team at Email: xfsolder@gmail.com or xfsolder@163.com ; Whatsapp/Wechat: 008613450770997 ; Main website: www.xfsolder.com
